Copy data from and to Salesforce Service Cloud V2 using Azure Data Factory or Azure Synapse Analytics

APPLIES TO: Azure Data Factory Azure Synapse Analytics

This article outlines how to use Copy Activity in Azure Data Factory and Azure Synapse pipelines to copy data from and to Salesforce Service Cloud. It builds on the Copy Activity overview article that presents a general overview of the copy activity.

Supported capabilities

This Salesforce Service Cloud connector is supported for the following capabilities:

① Azure integration runtime ② Self-hosted integration runtime

For a list of data stores that are supported as sources or sinks, see the Supported data stores table.

Specifically, this Salesforce Service Cloud connector supports:

• Salesforce Developer, Professional, Enterprise, or Unlimited editions.
• Copying data from and to custom domain (Custom domain can be configured in both production and sandbox environments).

You can explicitly set the API version used to read/write data via apiVersion property in linked service. When copying data to Salesforce Service Cloud, the connector uses BULK API 2.0.

Prerequisites

• API permission must be enabled in Salesforce.

• You need configure the Connected Apps in Salesforce portal referring to this official doc or our step by step guideline in the recommendation in this article.

  Important

  • The execution user must have the API Only permission.
  • Access Token expire time could be changed through session policies instead of the refresh token.

Salesforce Bulk API 2.0 Limits

We use Salesforce Bulk API 2.0 to query and ingest data. In Bulk API 2.0, batches are created for you automatically. You can submit up to 15,000 batches per rolling 24-hour period. If batches exceed the limit, you will see failures.

In Bulk API 2.0, only ingest jobs consume batches. Query jobs don't. For details, see How Requests Are Processed in the Bulk API 2.0 Developer Guide.

For more information, see the "General Limits" section in Salesforce developer limits.

Get started

To perform the copy activity with a pipeline, you can use one of the following tools or SDKs:

• Copy Data tool
• Azure portal
• .NET SDK
• Python SDK
• Azure PowerShell
• REST API
• Azure Resource Manager template

Create a linked service to Salesforce Service Cloud using UI

Use the following steps to create a linked service to Salesforce Service Cloud in the Azure portal UI.

1. Browse to the Manage tab in your Azure Data Factory or Synapse workspace and select Linked Services, then click New:

   • Azure Data Factory
   • Azure Synapse



2. Search for Salesforce and select the Salesforce Service Cloud connector.

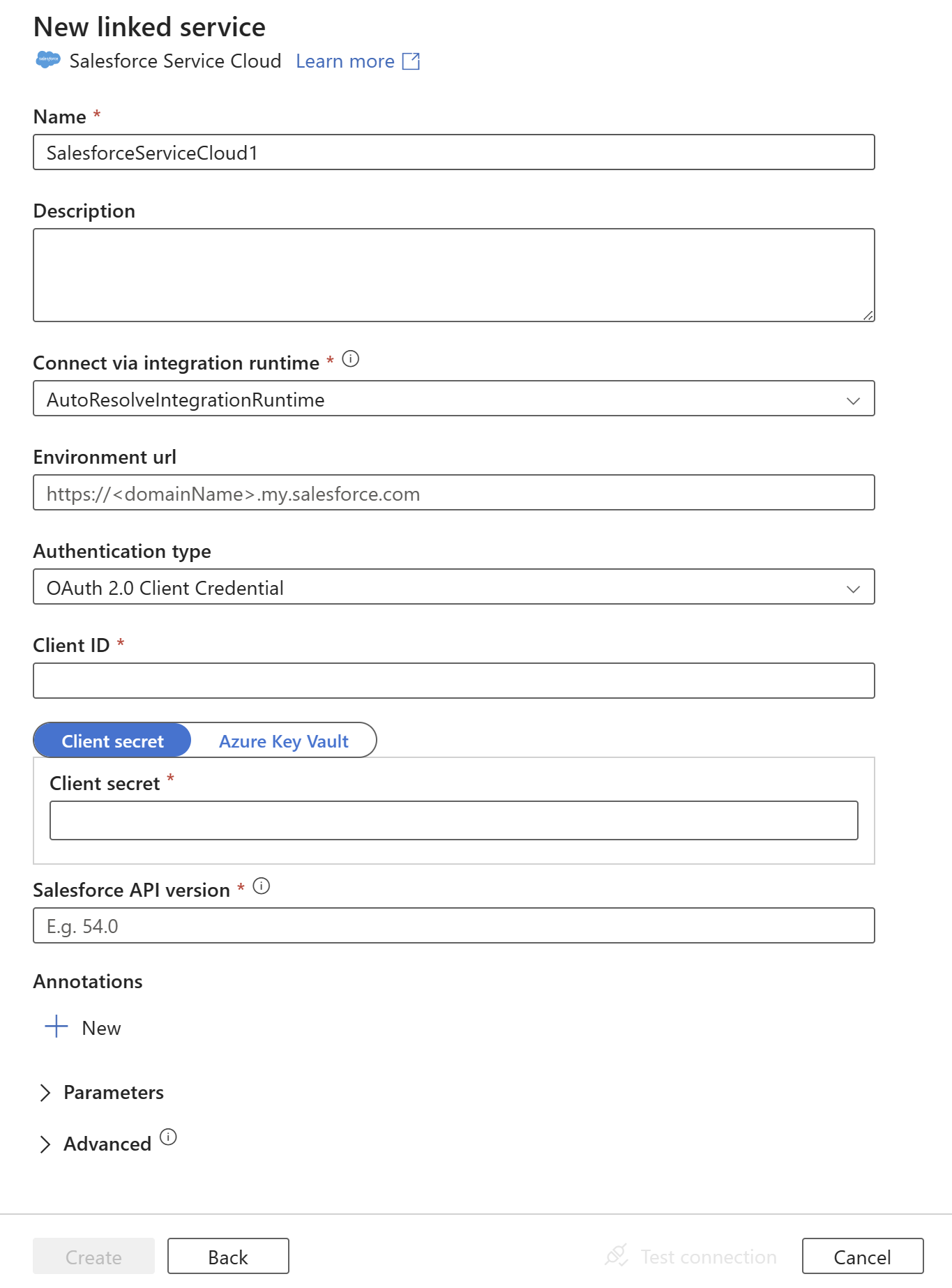

3. Configure the service details, test the connection, and create the new linked service.



Connector configuration details

The following sections provide details about properties that are used to define entities specific to the Salesforce Service Cloud connector.

Linked service properties

The following properties are supported for the Salesforce Service Cloud linked service.

Example: Store credentials

{
    "name": "SalesforceServiceCloudLinkedService",
    "properties": {
        "type": "SalesforceServiceCloudV2",
        "typeProperties": {
            "environmentUrl": "",
            "authenticationType": "OAuth2ClientCredentials",
            "clientId": "",
            "clientSecret": {
                "type": "SecureString",
                "value": ""
            },
            "apiVersion": ""
        },
        "connectVia": {
            "referenceName": "",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Example: Store credentials in Key Vault

{
    "name": "SalesforceServiceCloudLinkedService",
    "properties": {
        "type": "SalesforceServiceCloudV2",
        "typeProperties": {
            "environmentUrl": "",
            "authenticationType": "OAuth2ClientCredentials",
            "clientId": "",
            "clientSecret": {
                "type": "AzureKeyVaultSecret",
                "secretName": "",
                "store":{
                    "referenceName": "",
                    "type": "LinkedServiceReference"
                }
            },
            "apiVersion": ""
        },
        "connectVia": {
            "referenceName": "",
            "type": "IntegrationRuntimeReference"
        }
    }
}

Dataset properties

For a full list of sections and properties available for defining datasets, see the Datasets article. This section provides a list of properties supported by the Salesforce Service Cloud dataset.

To copy data from and to Salesforce Service Cloud, set the type property of the dataset to SalesforceServiceCloudV2Object. The following properties are supported.

Example:

{
    "name": "SalesforceServiceCloudDataset",
    "properties": {
        "type": "SalesforceServiceCloudV2Object",
        "typeProperties": {

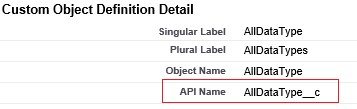

            "objectApiName": "MyTable__c"
        },
        "schema": [],
        "linkedServiceName": {
            "referenceName": "",
            "type": "LinkedServiceReference"
        }
    }
}

Copy activity properties

For a full list of sections and properties available for defining activities, see the Pipelines article. This section provides a list of properties supported by Salesforce Service Cloud source and sink.

Salesforce Service Cloud as a source type

To copy data from Salesforce Service Cloud, set the source type in the copy activity to SalesforceServiceCloudV2Source. The following properties are supported in the copy activity source section.

Example:

"activities":[
    {
        "name": "CopyFromSalesforceServiceCloud",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "
",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": "SalesforceServiceCloudV2Source",
                "query": "SELECT Col_Currency__c, Col_Date__c, Col_Email__c FROM AllDataType__c",
                "includeDeletedObjects": false,
                "preserveScaleFromSchema": false,
                "partitionOption": "AutoDetect"
            },
            "sink": {
                "type": ""
            }
        }
    }
]

Salesforce Service Cloud as a sink type

To copy data to Salesforce Service Cloud, set the sink type in the copy activity to SalesforceServiceCloudV2Sink. The following properties are supported in the copy activity sink section.

Example: Salesforce Service Cloud sink in a copy activity

"activities":[
    {
        "name": "CopyToSalesforceServiceCloud",
        "type": "Copy",
        "inputs": [
            {
                "referenceName": "",
                "type": "DatasetReference"
            }
        ],
        "outputs": [
            {
                "referenceName": "",
                "type": "DatasetReference"
            }
        ],
        "typeProperties": {
            "source": {
                "type": ""
            },
            "sink": {
                "type": "SalesforceServiceCloudV2Sink",
                "writeBehavior": "Upsert",
                "externalIdFieldName": "CustomerId__c",
                "writeBatchSize": 10000,
                "ignoreNullValues": true
            }
        }
    }
]

Data type mapping for Salesforce Service Cloud

When you copy data from Salesforce Service Cloud, the following mappings are used from Salesforce Service Cloud data types to interim data types within the service internally. To learn about how the copy activity maps the source schema and data type to the sink, see Schema and data type mappings.

Lookup activity properties

To learn details about the properties, check Lookup activity.

Salesforce Service Cloud connector lifecycle and upgrade

The following table shows the release stage and change logs for different versions of the Salesforce Service Cloud connector:

Upgrade the Salesforce Service Cloud connector

Here are steps that help you upgrade your Salesforce Service Cloud connector:

1. Configure the connected apps in Salesforce portal by referring to Prerequisites.

2. Create a new Salesforce Service Cloud linked service and configure it by referring to Linked service properties.

3. If you use SQL query in the copy activity source or the lookup activity that refers to the V1 linked service, you need to convert them to the SOQL query. Learn more about SOQL query from Salesforce Service Cloud as a source type and Salesforce Object Query Language (SOQL).

4. Support partitionOption in the copy activity source. For the detailed configuration, see Salesforce Service Cloud as a source type.

5. Support preserveScaleFromSchema in the copy activity source. For the detailed configuration, see Salesforce Service Cloud as a source type.

6. readBehavior is replaced with includeDeletedObjects in the copy activity source or the lookup activity. For the detailed configuration, see Salesforce Service Cloud as a source type.

Related content

For a list of data stores supported as sources and sinks by the copy activity, see Supported data stores.
