Standalone Aspire dashboard as an OTLP viewer

Run the Aspire dashboard as a standalone OTLP viewer to inspect local application logs, distributed traces, and metrics without an AppHost. Keep your existing application startup workflow, including Docker Compose, and configure your apps to export OpenTelemetry to the dashboard.

You can start the dashboard in two ways:

• Use the Aspire CLI to start the dashboard with default local endpoints.
• Use the standalone dashboard container image when you want to run it with Docker or another OCI-compliant container runtime.

Both options receive telemetry from OpenTelemetry-enabled apps. Instrumentation and export configuration are required in each application; starting the dashboard doesn’t instrument your code. For language-specific setup, see Python telemetry or JavaScript and Node.js telemetry.

The dashboard is compiled with Native AOT and uses Fluent UI v5. Normal CLI and AppHost startup select the packaged dashboard automatically; you don’t need an AOT switch or a separate telemetry configuration. Use the supported dashboard image for container-based deployments. OTLP endpoints, authentication requirements, and persistence settings apply regardless of how you start the dashboard.

Start the dashboard

Choose the startup path that best fits your workflow. The Aspire CLI provides the shortest local setup, while the container image works well when you already manage tools through a container runtime.

Aspire CLI

The quickest way to start the standalone dashboard is to use the Aspire CLI via npx. The npx command is a package runner included with Node.js.

To run the Aspire CLI package with npx:

Run with npx

npx -y @microsoft/aspire-cli dashboard run

Or install the Aspire CLI, then start the dashboard:

Aspire CLI

aspire dashboard run

The dashboard starts with the following defaults:

• Frontend UI at http://localhost:18888
• OTLP/gRPC endpoint at http://localhost:4317
• OTLP/HTTP endpoint at http://localhost:4318

The dashboard is secured with a browser token by default. A login URL with the token is displayed in the terminal output. Use --allow-anonymous to disable authentication during local development. For the security implications, see Dashboard security considerations.

For all available options, see the aspire dashboard run command reference.

Container image

The dashboard also ships as a standalone container image. Use this option when a container workflow fits your environment or you want to manage dashboard hosting with your existing container tooling.

Bash

docker run --rm -it -p 18888:18888 -p 4317:18889 -p 4318:18890 -d --name aspire-dashboard \
    mcr.microsoft.com/dotnet/aspire-dashboard:latest

PowerShell

docker run --rm -it -p 18888:18888 -p 4317:18889 -p 4318:18890 -d --name aspire-dashboard `
    mcr.microsoft.com/dotnet/aspire-dashboard:latest

The preceding Docker command:

• Starts a container from the mcr.microsoft.com/dotnet/aspire-dashboard:latest image.
• The container exposes three ports:
  • Mapping the dashboard’s port 18888 to the host’s port 18888. Port 18888 has the dashboard UI. Navigate to http://localhost:18888 in the browser to view the dashboard.
  • Mapping the dashboard’s OTLP/gRPC port 18889 to the host’s port 4317. Port 4317 receives OpenTelemetry data from apps using OTLP/gRPC.
  • Mapping the dashboard’s OTLP/HTTP port 18890 to the host’s port 4318. Port 4318 receives OpenTelemetry data from apps using OTLP/HTTP.

Login to the dashboard

Data displayed in the dashboard can be sensitive. By default, the dashboard is secured with authentication that requires a token to login.

When the dashboard is run with aspire dashboard run, the Aspire CLI prints the login URL directly in the terminal. Open that URL in your browser to log in.

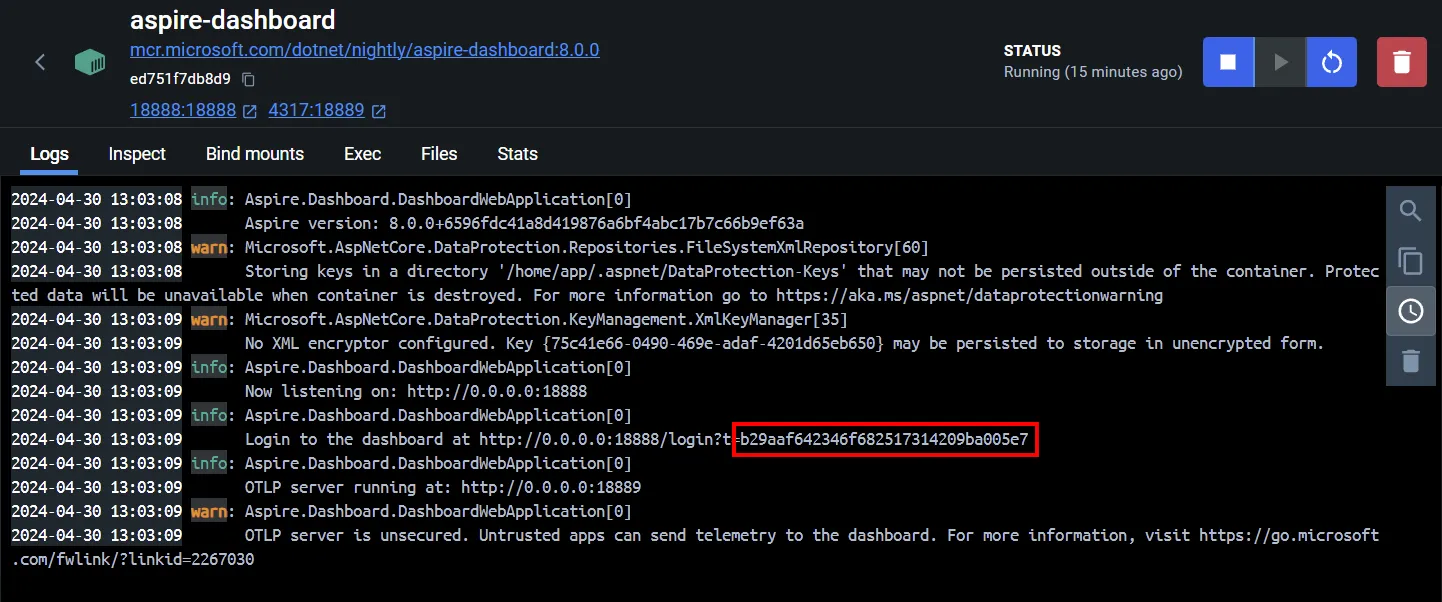

When the dashboard is run from a standalone container, the login token is printed to the container logs. The logs are displayed in the Docker Desktop user interface on the Logs tab for the aspire-dashboard container:

After copying the highlighted token into the login page, select the Login button.

Alternatively, you can obtain the token from the logs by using the docker command:

Bash

#!/bin/bash
loginLine=$(docker container logs aspire-dashboard | grep "login?t=")
match=$(echo "$loginLine" | sed -n 's/.*login?t=\([^[:space:]]*\).*/\1/p')
echo -n "$match" | xclip -selection clipboard
echo "$match"

Tip

This script requires that your system has the sed and xclip tools installed.

PowerShell

$loginLine =  docker container logs aspire-dashboard | Select-String "login\?t="
$matches = [regex]::Match($loginLine, "(?<=login\?t=)(\S+)")
$matches.Value | Set-Clipboard
echo $matches.Value

Tip

To avoid the login during local development, start the dashboard with aspire dashboard run --allow-anonymous. If you’re running the dashboard container, set the ASPIRE_DASHBOARD_UNSECURED_ALLOW_ANONYMOUS environment variable to true. See Dashboard security considerations for the security implications and Dashboard configuration for additional configuration.

For more information about logging into the dashboard, see Dashboard authentication.

Explore the dashboard

The dashboard offers a UI for viewing telemetry. Refer to the documentation to explore the telemetry functionality:

• Structured logs page
• Traces page
• Metrics page

Although there is no restriction on where the dashboard is run, the dashboard is designed for development and short-term diagnostics rather than production telemetry retention:

• Telemetry is automatically removed if telemetry limits are exceeded.
• The dashboard can be configured to persist telemetry, but it is intended for development history and a limited number of diagnostics, not long-term production observability.

Unavailable features when standalone

Telemetry service names aren’t AppHost-managed resources. In standalone mode, the dashboard doesn’t provide process health, console output capture, or start/stop/restart controls through the resources UI. To enable those resource features, configure a resource service.

An OTEL-only dashboard also doesn’t have resource terminals or the AppHost terminal dock. Sending telemetry can’t create a terminal session: dashboard terminals require a live AppHost connection and a terminal producer.

AI coding agents can still use the standalone dashboard via the Aspire CLI and MCP server. See Dashboard and AI coding agents for details.

Send telemetry to the dashboard

Apps send telemetry to the dashboard using OpenTelemetry Protocol (OTLP). The dashboard must expose a port for receiving OpenTelemetry data, and apps are configured to send data to that address.

Both startup options shown earlier configure the dashboard to receive OpenTelemetry data on port 4317 (gRPC) and port 4318 (HTTP). The OTLP endpoint addresses are http://localhost:4317 for gRPC and http://localhost:4318 for HTTP. The Docker command maps the container’s OTLP ports to the same host ports.

Configure OpenTelemetry SDK

Apps collect and send telemetry using their language’s OpenTelemetry SDK.

Important OpenTelemetry SDK options to configure:

• OTLP endpoint, which should match the dashboard’s configuration, for example, http://localhost:4317 for gRPC or http://localhost:4318 for HTTP.
• OTLP protocol. The dashboard supports all OTLP protocols:
  • OTLP/gRPC (grpc)
  • OTLP/HTTP (http/protobuf or http/json)

To configure applications:

• Use the OpenTelemetry SDK APIs within the application, or
• Start the app with known environment variables:
  • OTEL_EXPORTER_OTLP_PROTOCOL with a value of grpc, http/protobuf, or http/json.
  • OTEL_EXPORTER_OTLP_ENDPOINT with a value of http://localhost:4317 for gRPC or http://localhost:4318 for HTTP.

Note

Additional configuration may be required to authenticate with the dashboard if you have configured the dashboard to secure the telemetry endpoint. For more information, see Securing the telemetry endpoint.

Query telemetry with the Aspire CLI

The Aspire CLI can query telemetry data directly from the dashboard’s API, allowing you to view logs, traces, and spans from the terminal without opening the dashboard UI.

The dashboard’s telemetry API is secured with API key authentication by default. When using the CLI commands, you can pass the dashboard’s login URL (including the browser token) via --dashboard-url and the token is automatically exchanged for an API key. Alternatively, if the dashboard is started with aspire dashboard run --allow-anonymous or the ASPIRE_DASHBOARD_UNSECURED_ALLOW_ANONYMOUS environment variable is set to true, no authentication is required. See Dashboard security considerations for the security implications.

View telemetry with aspire otel

The aspire otel commands retrieve telemetry from the dashboard. Use --dashboard-url to point at a standalone dashboard — you can paste the full login URL and the browser token is automatically exchanged for an API key:

Aspire CLI

aspire otel logs --dashboard-url "http://localhost:18888/login?t="
aspire otel traces --dashboard-url "http://localhost:18888/login?t="
aspire otel spans --dashboard-url "http://localhost:18888/login?t="

For more details, see the aspire otel logs, aspire otel traces, and aspire otel spans command references.

Use AI agents with aspire agent mcp

The aspire agent mcp command starts an MCP (Model Context Protocol) server that AI assistants can connect to. When used with --dashboard-url, it runs in dashboard-only mode and exposes telemetry tools (structured logs and traces) to MCP-compatible clients:

Unlike aspire otel, the MCP command doesn’t exchange the browser token from a login URL. Start the dashboard with an explicit telemetry API key:

Aspire CLI

aspire dashboard run --Dashboard:Api:AuthMode=ApiKey --Dashboard:Api:PrimaryApiKey=""

Then start the MCP server in a separate terminal with the dashboard base URL and the same key:

Aspire CLI

aspire agent mcp --dashboard-url "http://localhost:18888" --api-key ""

Use a high-entropy key and don’t commit or share it. For more information, see Secure the telemetry API endpoint.

Enable persistence

The standalone dashboard defaults to no persistence and telemetry is lost when the dashboard shuts down. To retain data, choose one of the persistent modes:

• Run preserves each dashboard session as a separate run and enables selection of historical runs.
• Resume continues the same telemetry history across dashboard restarts. New telemetry is appended.

For more information about persistence modes, run history, and retention, see Aspire dashboard data persistence.

Aspire CLI persistence

Pass a persistent mode and a stable application name to aspire dashboard run.

Aspire CLI

aspire dashboard run --application-name my-app --persistence run

The application name partitions persisted data.

Persist data between container runs

For a dashboard container more configuration is required because the local filesystem is ephemeral. You must mount persistent storage.

Bash

Create the volume and run the dashboard

docker volume create aspire-dashboard-data

docker run --rm -d --name aspire-dashboard \
  -p 18888:18888 \
  -p 4317:18889 \
  -p 4318:18890 \
  --mount type=volume,source=aspire-dashboard-data,target=/dashboard-data \
  -e ASPIRE_DASHBOARD_APPLICATION_NAME=my-app \
  -e ASPIRE_DASHBOARD_DATA_DIRECTORY=/dashboard-data \
  -e ASPIRE_DASHBOARD_PERSISTENCE_MODE=run \
  mcr.microsoft.com/dotnet/aspire-dashboard:latest

PowerShell

Create the volume and run the dashboard

docker volume create aspire-dashboard-data

docker run --rm -d --name aspire-dashboard `
  -p 18888:18888 `
  -p 4317:18889 `
  -p 4318:18890 `
  --mount type=volume,source=aspire-dashboard-data,target=/dashboard-data `
  -e ASPIRE_DASHBOARD_APPLICATION_NAME=my-app `
  -e ASPIRE_DASHBOARD_DATA_DIRECTORY=/dashboard-data `
  -e ASPIRE_DASHBOARD_PERSISTENCE_MODE=run `
  mcr.microsoft.com/dotnet/aspire-dashboard:latest

Stop the container and run the same docker run command again to access the retained data. Keep the volume, application name, and persistence mode unchanged between container runs.

Persisted telemetry can contain sensitive data. Restrict access to the volume and see Aspire dashboard data persistence for persistence behavior and Dashboard security considerations for security requirements.

Sample

For a sample of using the standalone dashboard, see the Standalone Aspire dashboard sample app.

Next steps

• Configure the Aspire dashboard
